4 Adjustments Manual Bed with ABS Surface

4 Adjustments Manual Bed with ABS Surface

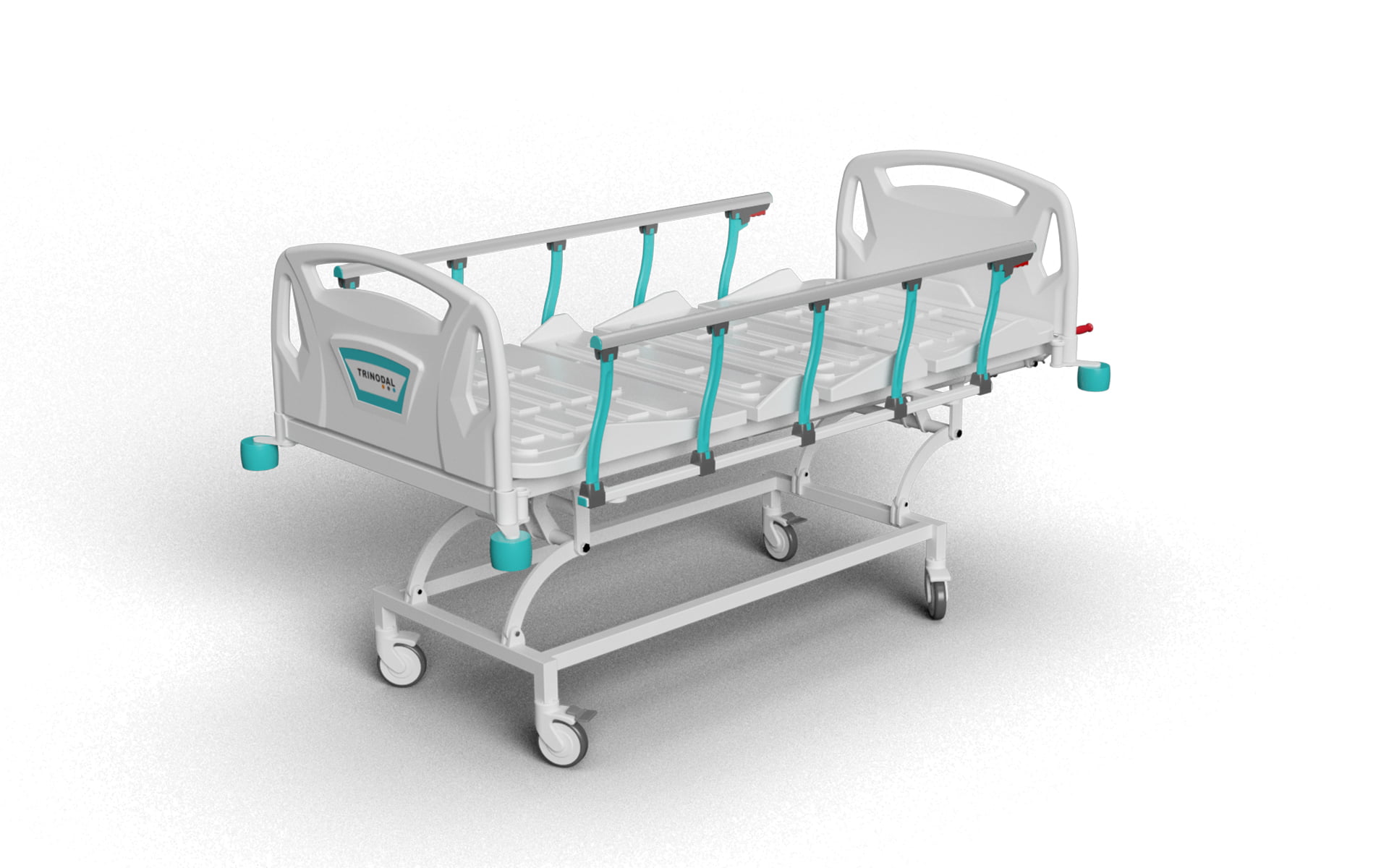

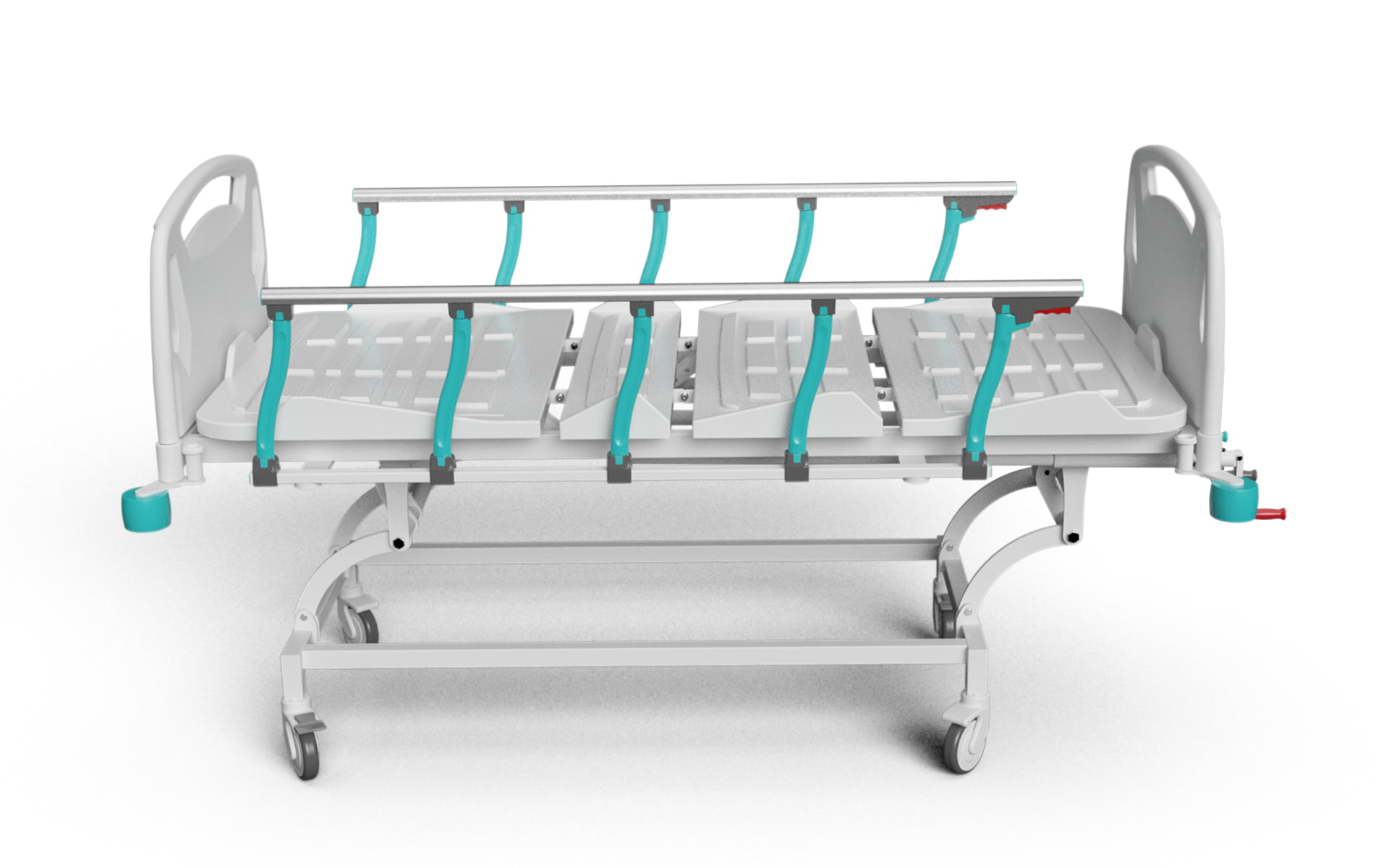

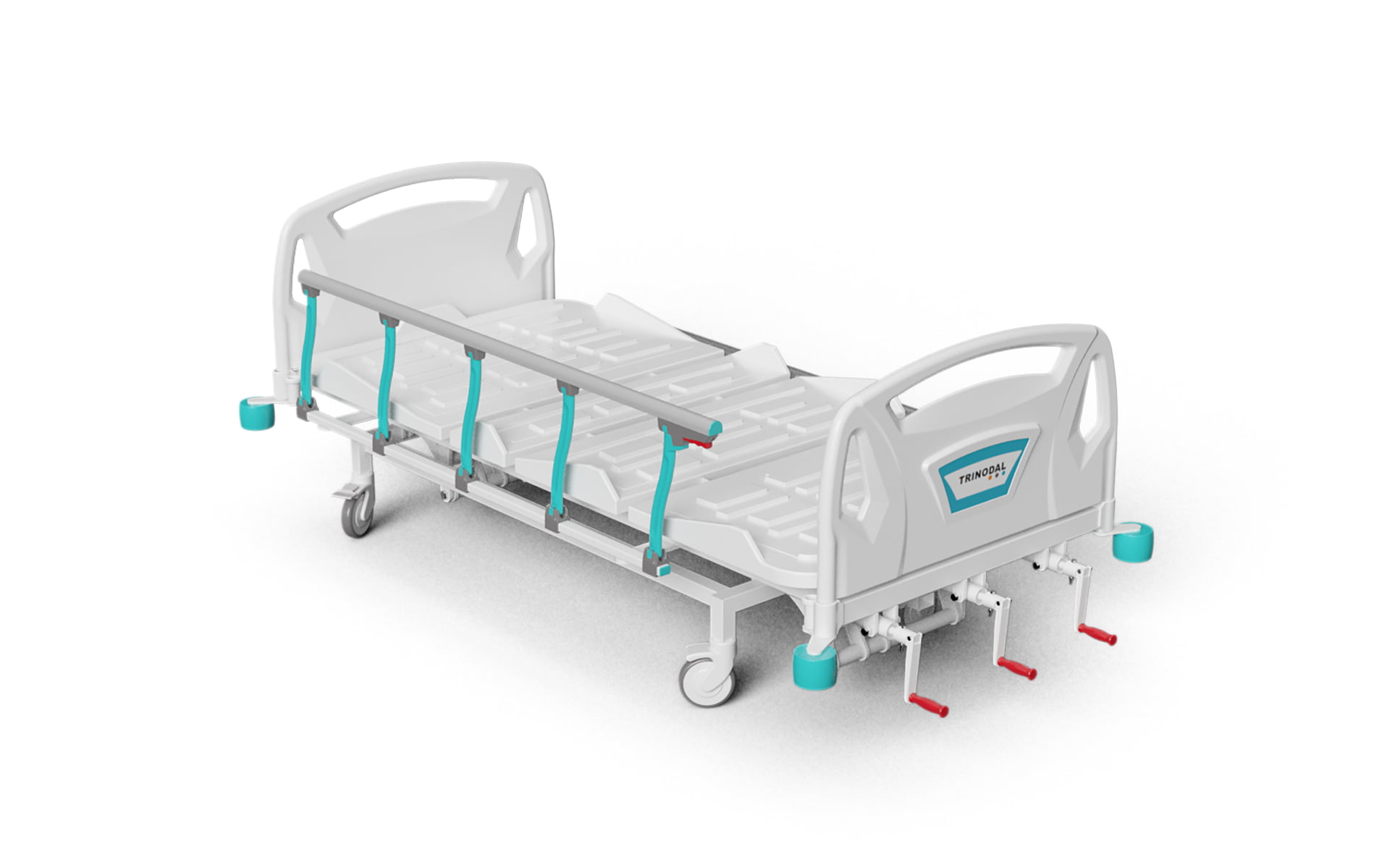

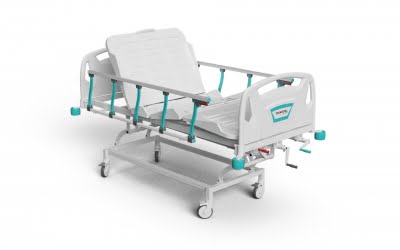

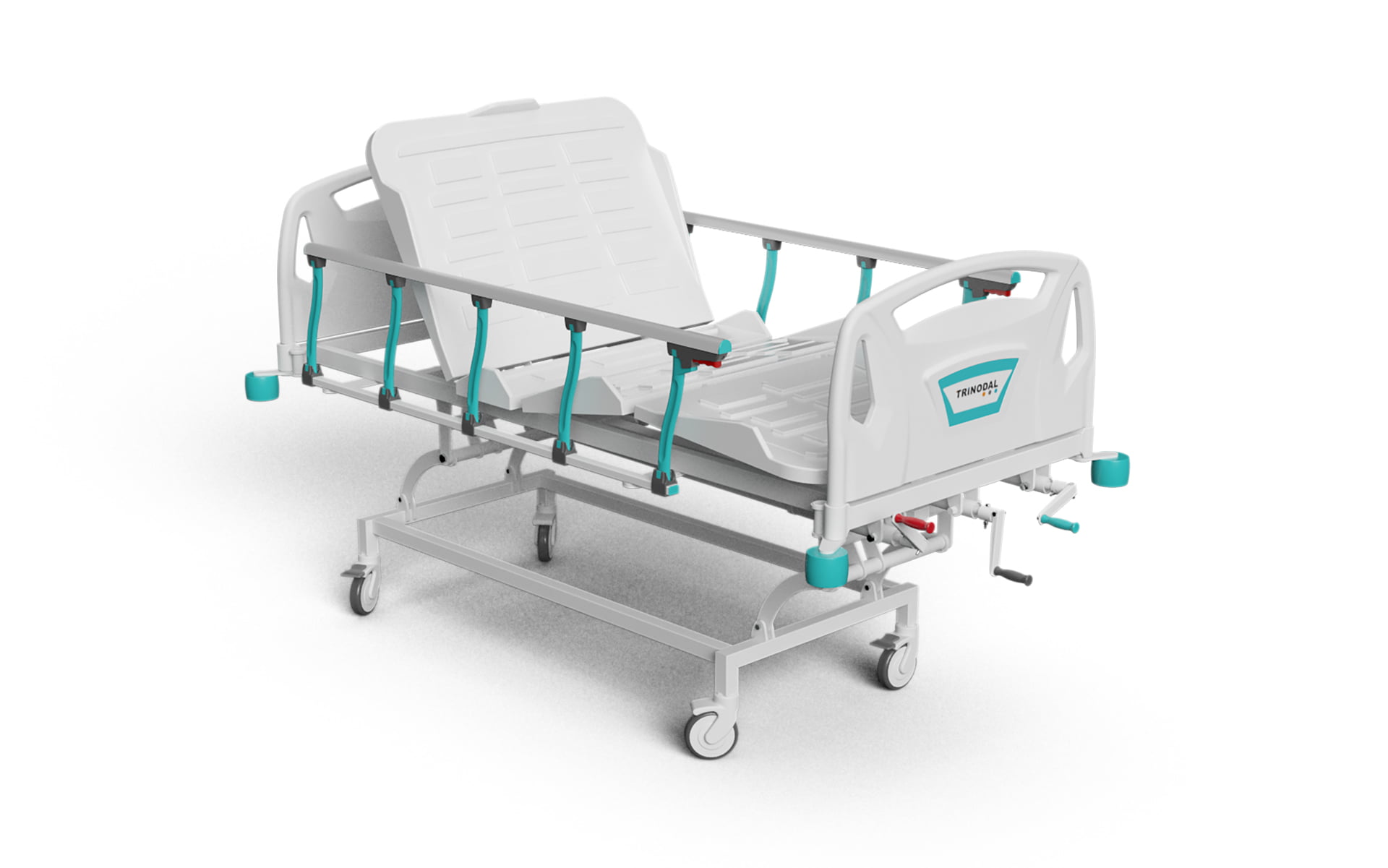

DM 3010 is height adjustable mechanical bed with three cranks & four adjustments for height, backrest, knee-rest and footrest. It has Polypropylene head and foot boards and patented aluminum foldable side rails with ABS bed surface. It is designed to cover caregivers’ requirements and patients’ comfort in any hospital unit.

Datasheet

Click here for download datasheet.
  • Four Adjustments Manual Bed with ABS Surface
  • 70° Backrest Adjustment
  • 45° Kneerest Adjustment
  • Manually Operated Height Adjustment
  • Manuel Footrest Adjustment
  • ABS Bed Surface
  • Aluminum Foldable Side Rails
  • Polypropylene Head & Foot Boards
  • Cross Lockable Castors
  • Epoxy Powder Coated Main Construction
  • External Dimension: Width 1080 mm, Length 2145 mm
  • Height: Min. 460 mm, Max. 800 mm
  • Bed Surface Dimension: Width 900 mm, Length 1900 mm
  • Standard Weight Capacity: 210 kg
  • Two Induvidual Lockable Castors: 125 mm
  • Urine Bag Holder
  • Epoxy Coated I.V. Pole
  • Manual Trendelenburg
