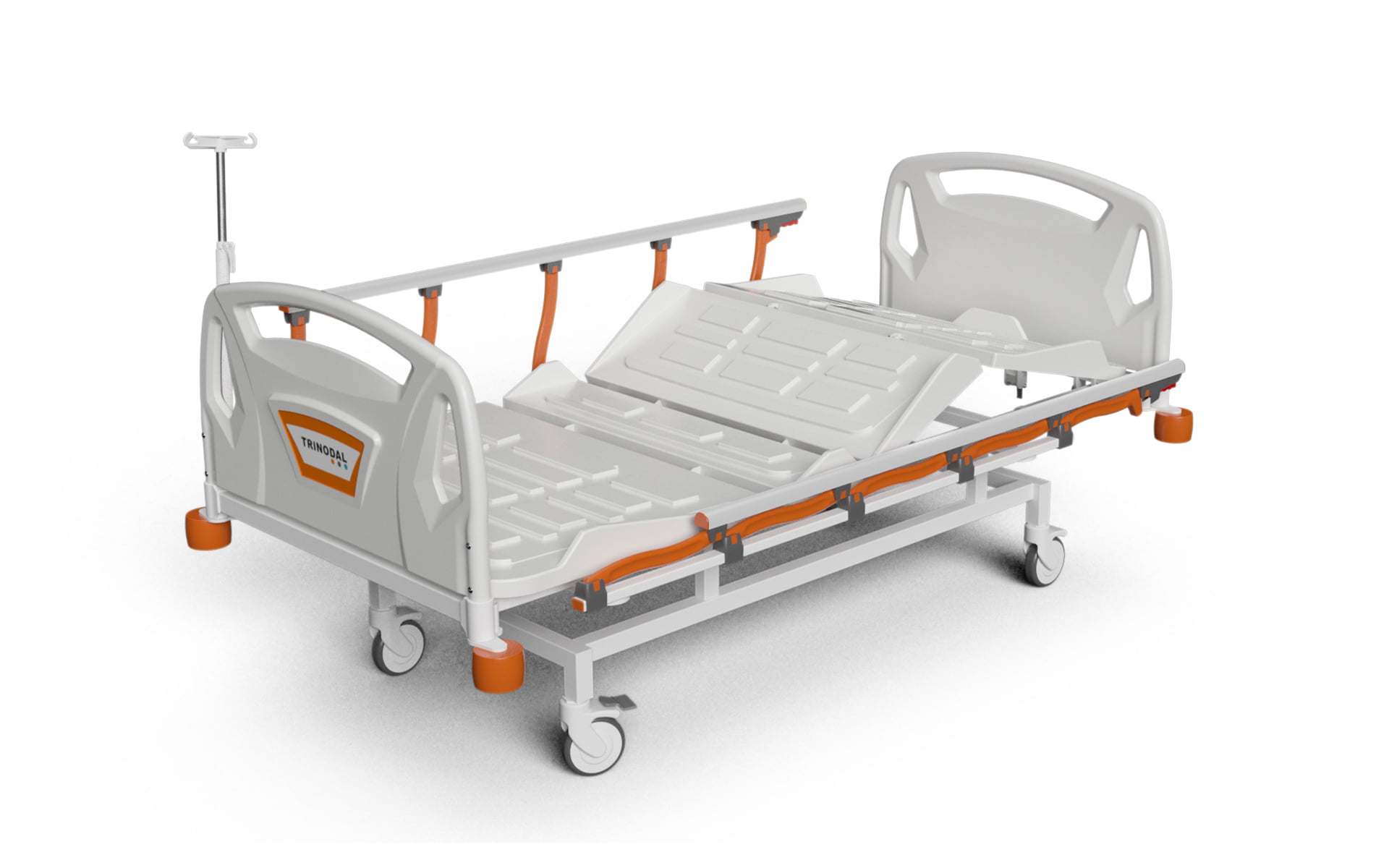

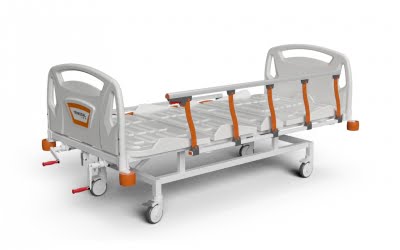

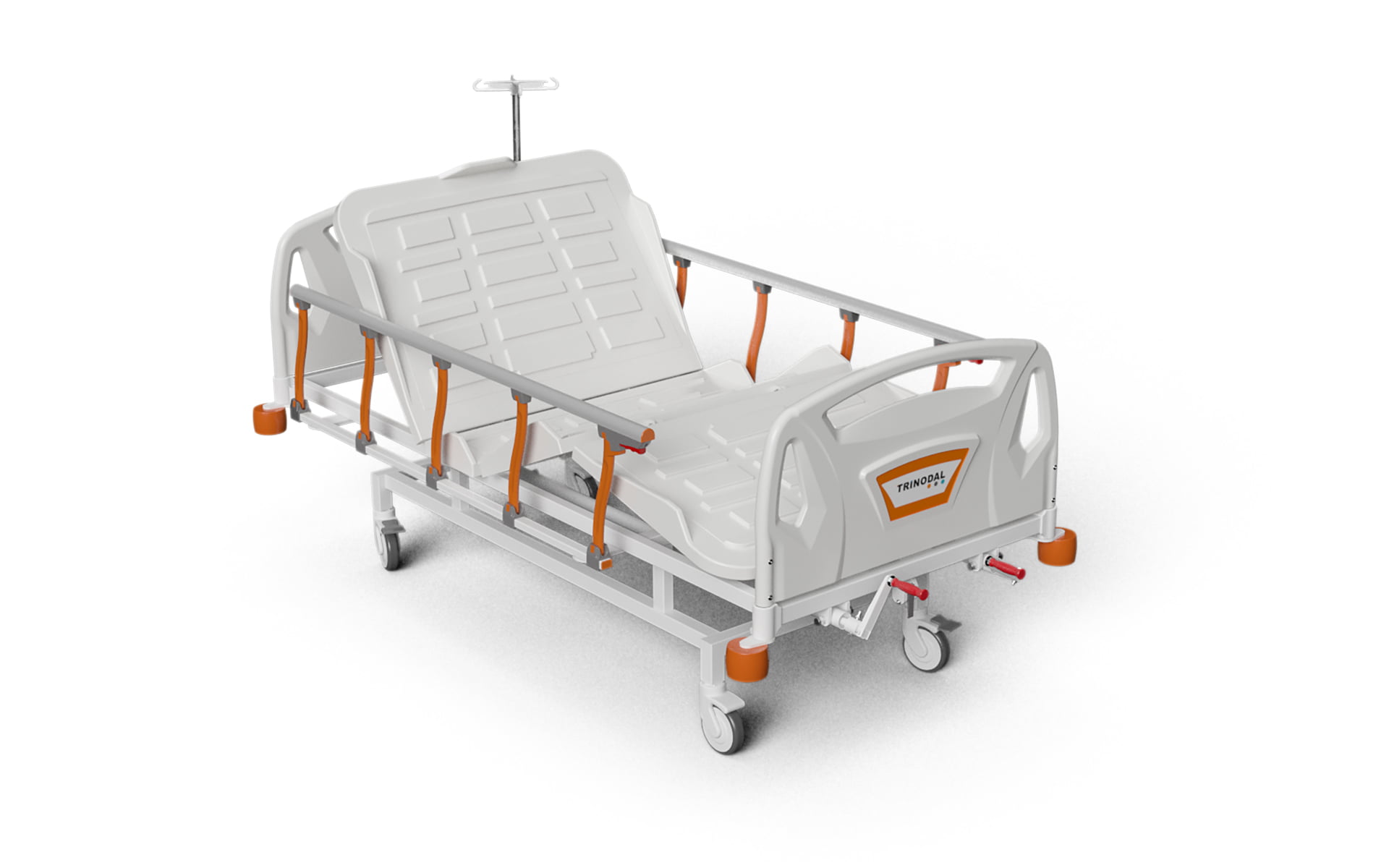

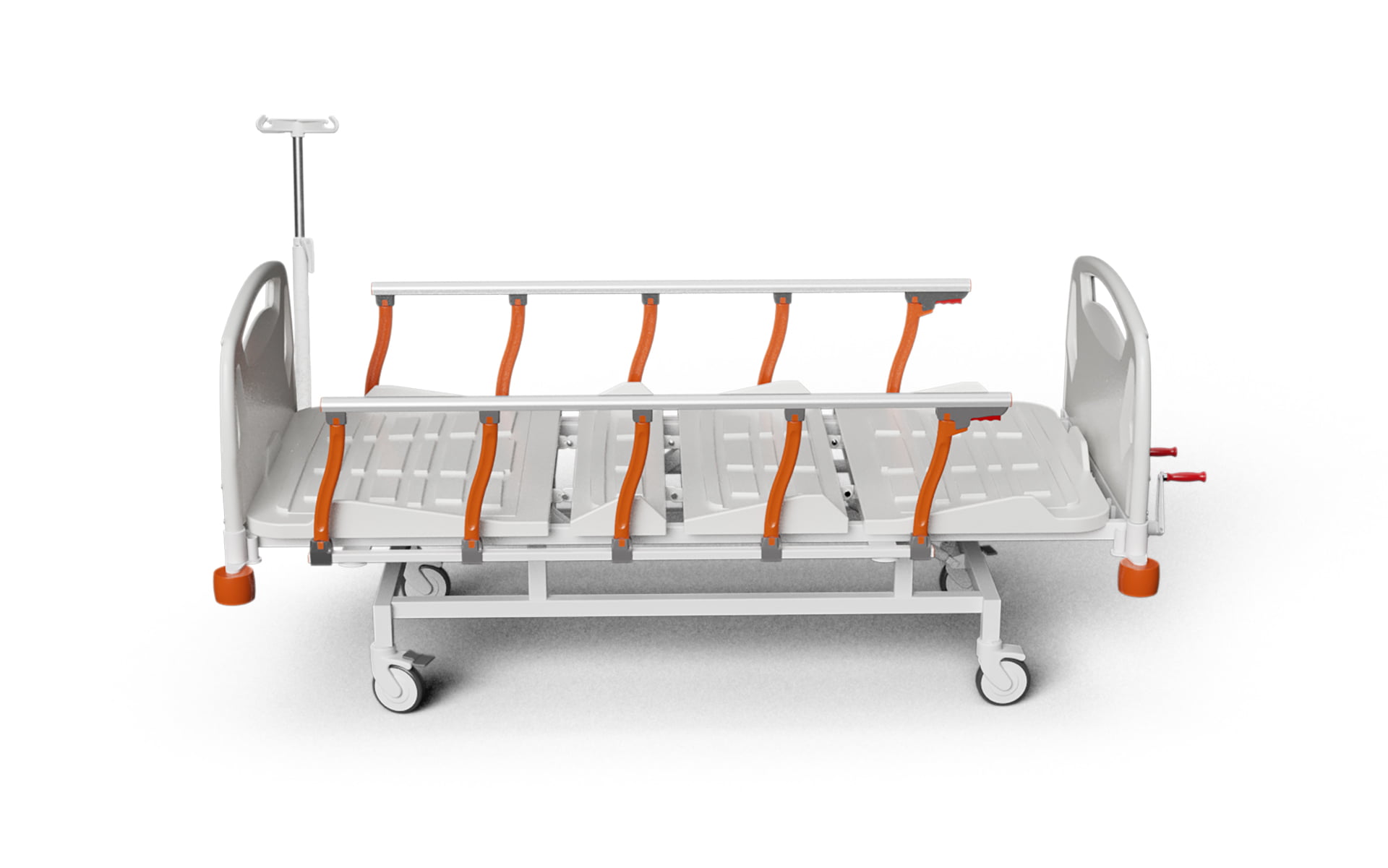

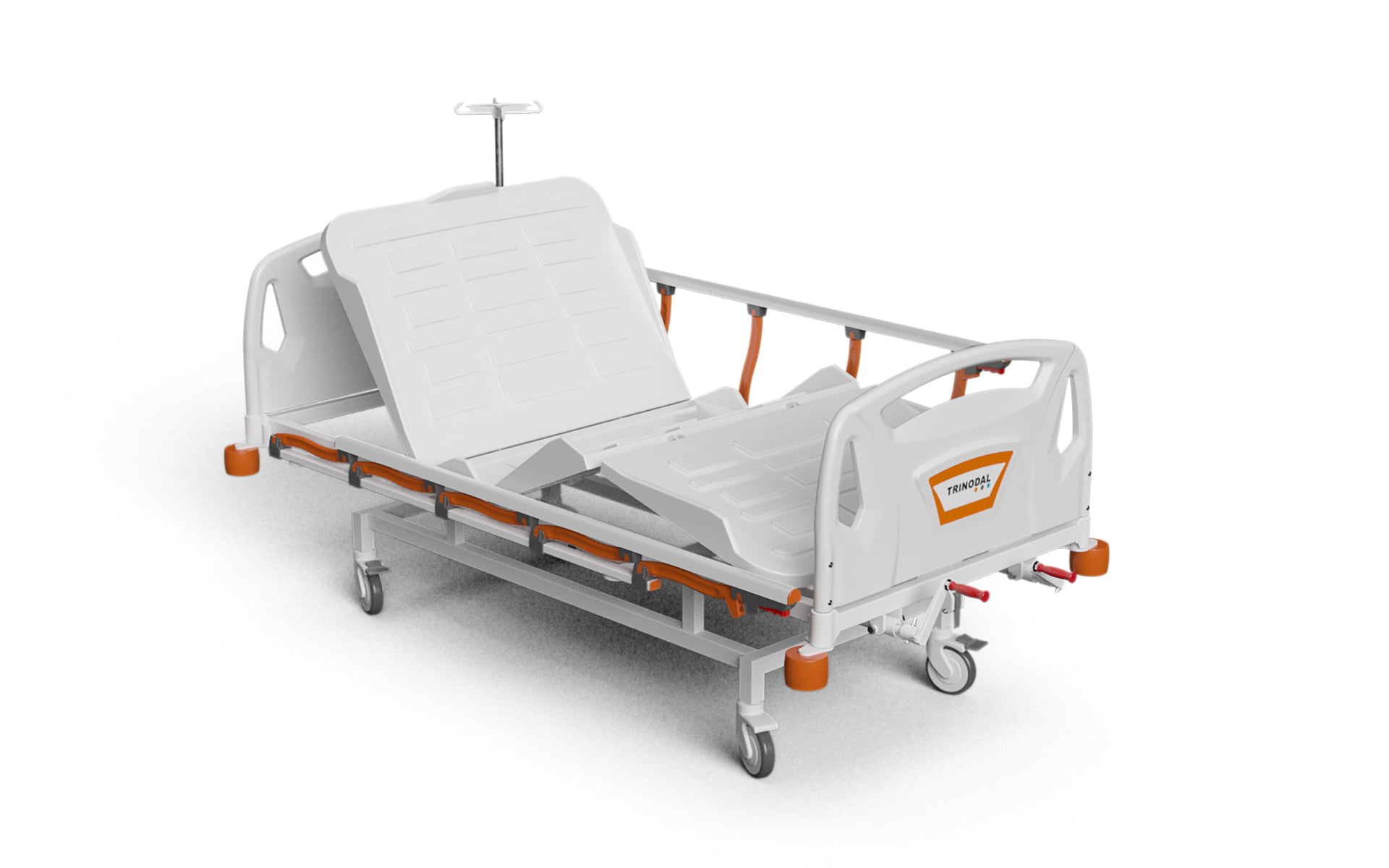

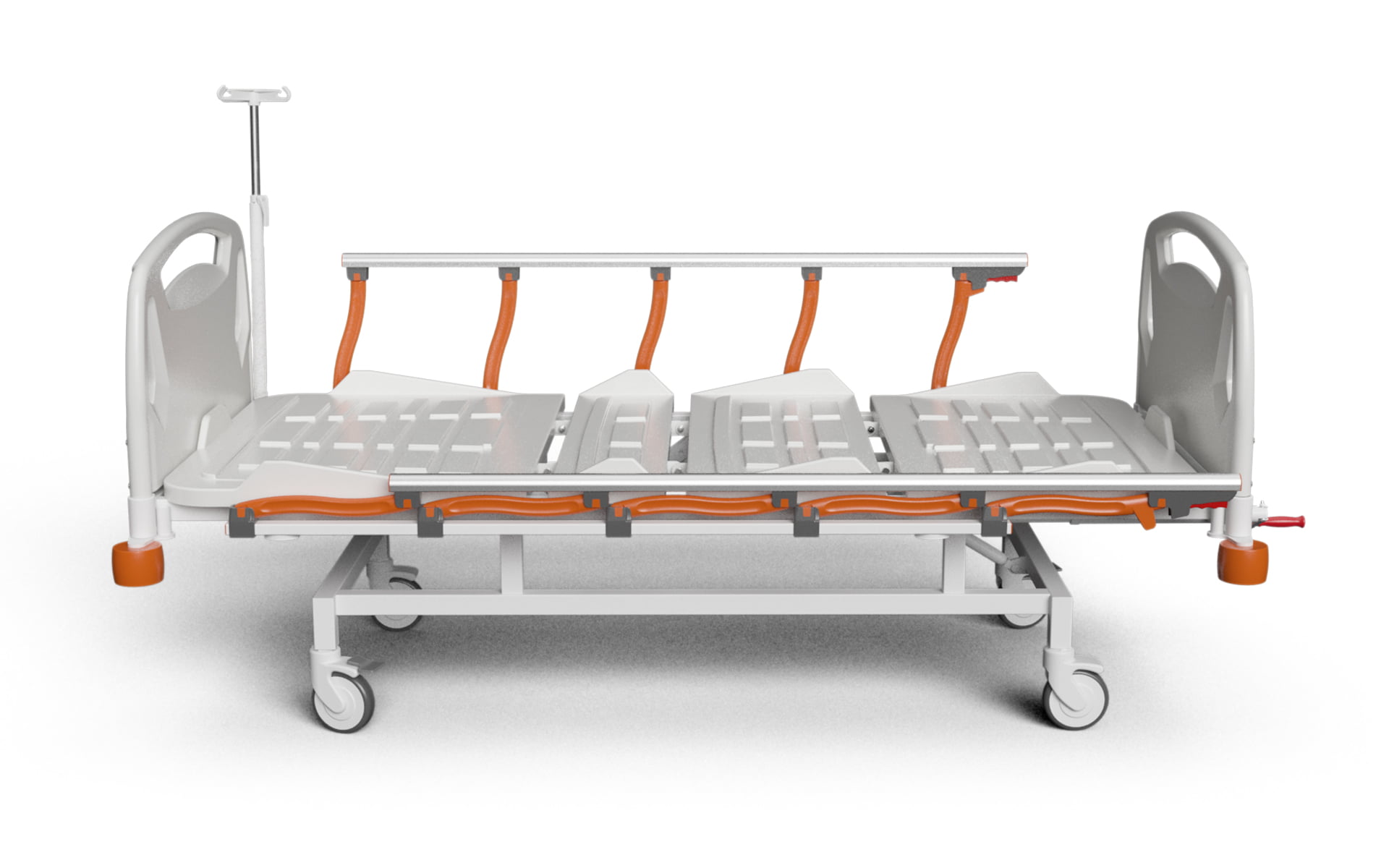

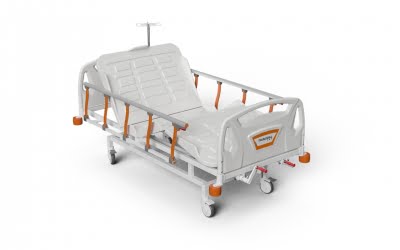

3 Adjustments Manual Bed with ABS Surface
DM 2230 is a basic mechanical bed with three adjustments for backrest and kneerest. It is operated by handcranks. It has Polypropylene head and foot boards and patented aluminum foldable side rails.
Datasheet
![]() |
Click here for download datasheet. |
- Three Adjustments Manual Bed with ABS Surface
- 70° Backrest Adjustment
- 45° Kneerest Adjustment
- 16° Trendelenburg with Gas Spring Mechanism
- ABS Bed Surface
- Height Adjustable I.V. Pole
- Aluminum Foldable Side Rails
- Polypropylene Head & Foot Boards
- Cross Lockable Castors
- Epoxy Powder Coated Main Construction
- External Dimension: Width 980 mm, Length 2150 mm
- Height: 500 mm
- Bed Surface Dimension: Width 900 mm, Length 2000 mm
- Standard Weight Capacity: 210 kg
- Two Individual Lockable Castors: 125 mm
- Second I.V. Pole
- Urine Bag Holder
